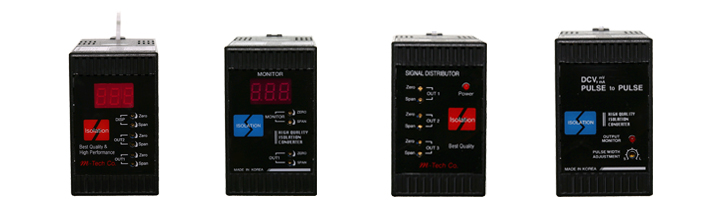

Plug-In Type
유량 압력 온도 레벨 센서등에 계량기기의 출력신호를 절연된 AC Signal로 변환 전송하여 Noise나 Surge의 영향의 보호를 위해서도 사용되어 집니다.
|
Specification
| Input |
Output | Power | Isolation | Accuracy | Response Time | Insulation Resistance | Dielectric Strength | Operating Temperature | Operating Humidity | Dimension | Weight | Housing Material | Mounting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT 100Ω , 2-Wire Transmitter , DC Signal , AC Voltage AC Current 2 input Adder Subtracter , Multiplier Reverser , Square Root Extractor T/C Load-Cell Frequency , Peak-Holder Sample-Holder etc |
12V max , 30mA DC max , 750 Ω max | AC110/220V 50/60Hz DC 24V (Option) | Input to Output to Power | I 0.15% of Full Scale | 0.5Sec or less , 0∼90% Normal | Greater than 100MΩ 500VDC | 1500VAC @ 1minute (Input to Output to Power) | 0∼50℃ | 90% RH max (Non-Condensing) | 83(H)mm x 51(W)mm x 102(D)mm | about 400g | Plastic ABS Black | Wall or Rail Mounting |
Document File
| 모델 | 사양 | 카다로그 |
|---|---|---|
| MT-IPT | Isolated Power Distributer |
|
| MT-DAS | DIGITAL ALARM SET CONVERTER |
|
| MT-ACT | AC CURRENT TRANSDUCER | |
| MT-AVT | AC VOLTAGE TRANSDUCER | |
| MT-DSM | DC SIGNAL MULTIPLIER | |
MT-DSA | DC SIGNAL ADDER | |
MT-DSD | ANALOG DC SIGNAL DIVIDER | |
MT-DST-D | DUAL CHANNEL IN/OUT SIGNAL ISOLATOR | |
MT-DST | DC SIGNAL TRANSMITTER | |
| MT-DST3 | 3 CHANNEL DC SIGNAL TRANSMITTER | |
| MT-PMT | POTENTIOMETER TRANSMITTER | |
| MT-RST | RTD SENSOR TRANSMITTER | |
| MT-SQT | ISOLATED SQUARE ROOT EXTRACTOR | |
| MT-SLT | STRAIN GAUGE / LOAD-CELL TRANSMITTER | |
| MT-TCT | THERMO-COUPLE MRANSMITTER | |
| MT-FDT | FREQUENCY to DC TRANSDUCER | |
| MT-DFT | DC to FREQUENCY TRANSDUCER | |
| MT-LPT | LOW PULSE TRANSMITTER | |
| MT-PDC | PULSE DIVIDE CONVERTER | |
| MT-FFT | FREQUENCY SCALER | |
