MTM-200R
Remote type
Specification
| Model | Size | Process connection | Accuracy | Measuring range | Lining meterial | Fluid temperature |
Ambient Temperature | Conductivity | Power supply |
Display |
Output |
Communication | Protection class | Test & diagnosis | Special Function | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MTM-200R | 3 ~ 2000mm | Flange type KS, ANSI, DiN | ±0.5%，±0.3%or±0.2% are selectable | 0.1 ~ 15m/s | PTFE, PFA, Neoprene, POLY | PTFE(PFA) : -40~130℃ Neoprene : -20~70℃ Poly : -10~60℃ Remote : -40~180℃ |
-25~60℃ | 20 μs / cm | AC 85 ~ 250V, 50/60HZ DC 24V ± 10% |
Flowrate(5-digit) Totalizer(9-digit) With backlight |
Analog : DC 4~20mA Pulse : 8~30V(open collector) |
RS-485(MODBUS, RTU), RS-232 | IP65 / IP68(optional) | Self-diagnosis, Fail record, Current output test, Control input/output test, Emulation test mode, ETC | - | Cable length 10m(standard) |

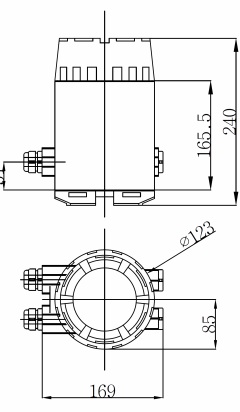

Display & Drawing

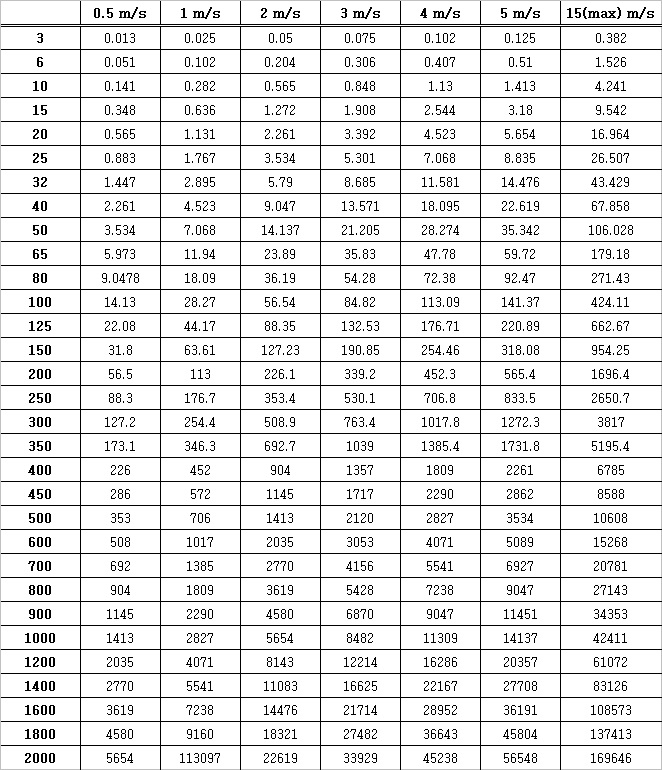

FLOW RANGE TABLE

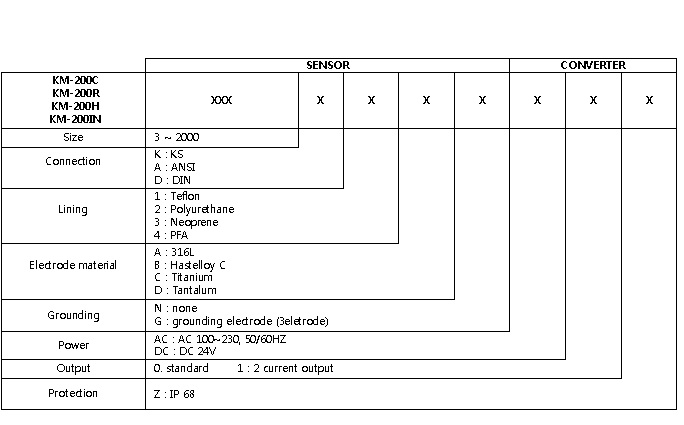

Model Selection Guide

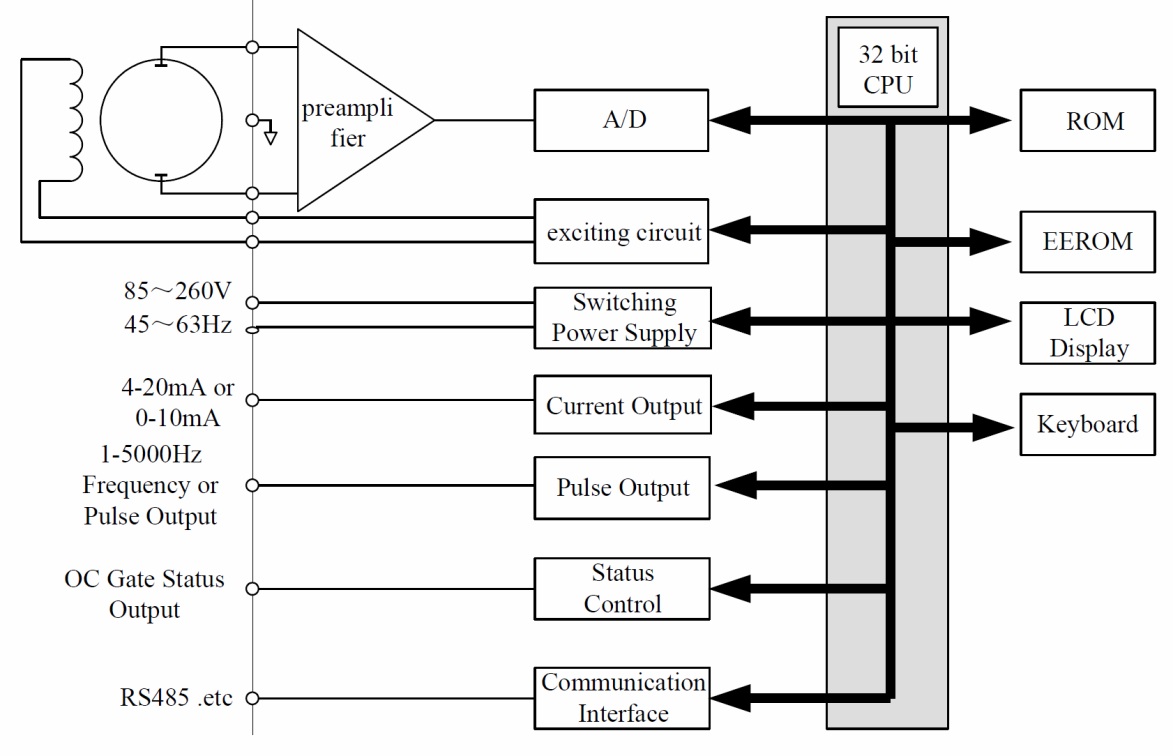

Structure Circuit of Converter

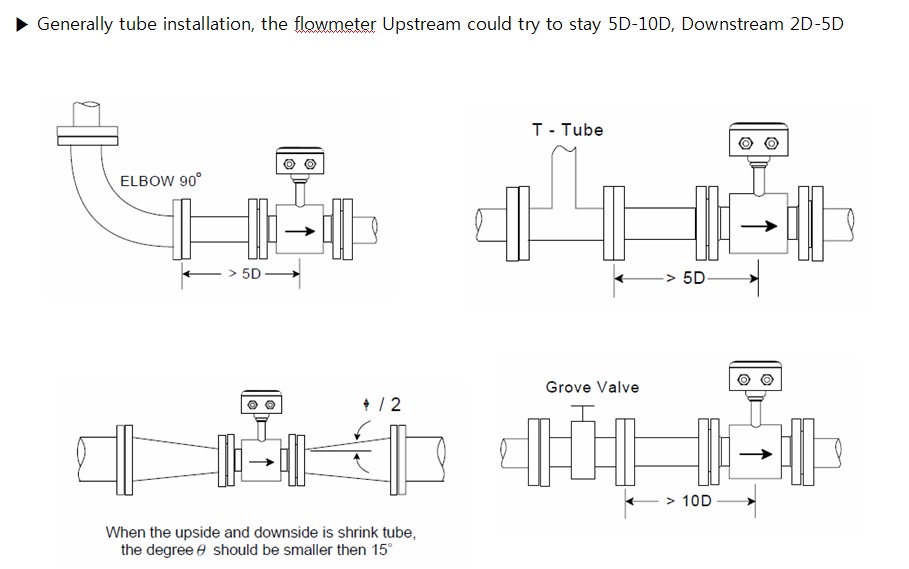

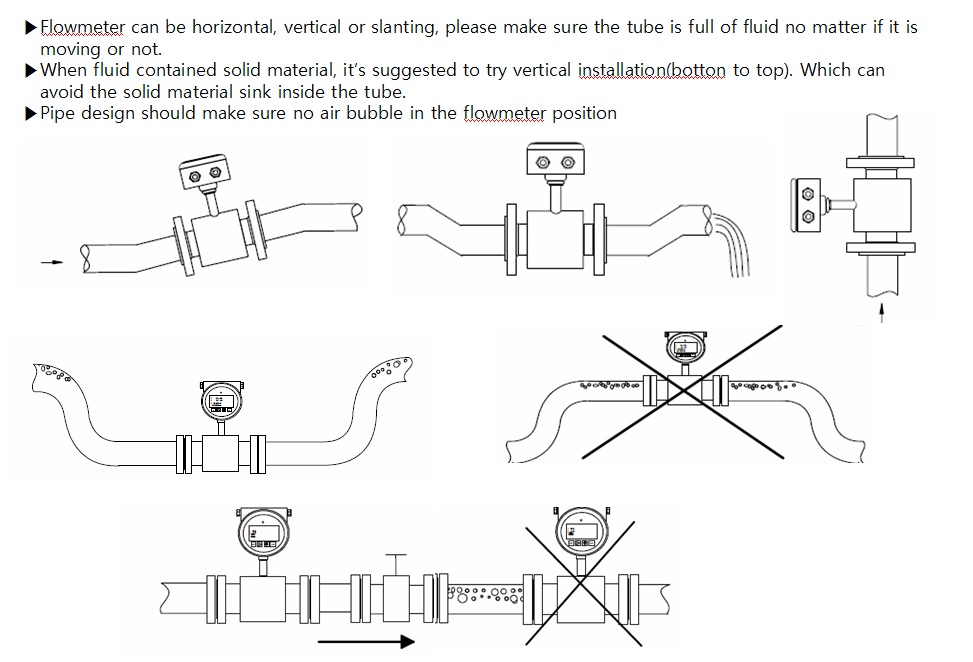

Installation
