MFC-100
MULTI FUNCTION FLOW COMPUTER
Specification
Measurement
| Input signal ) |
Output signal |
|---|---|
|
Current : 0-20mA, 0-10mA, 4-20mA(Impedance≤100Ω) Voltage : 0-5V, 1-5V, 0-10V(Impedance≤100Ω) Thermal resistance : Pt100, Cu50, Cu53, Cu100 Linear resistance : 0-400Ω Thermocouple : B, S, K, E, T, J, R, N, F2, Wre3-25, Wre5-26 Frequency signal : range:0-10KHz |
Analog output : 4-20mA/ 0-20mA, 0-10mA, 1-5V, 0-5V, 0-10V Alarm output : relay control output : AC220V/2A, DC24V/2A Feed output : DC24V±1 Communication : RS485 / RS232, MODBUSRTU |
Parameters
| Setting mode | Display mode | Record interval | Storage time | Operating environment | Power supply | Power consumption | Structure |
|---|---|---|---|---|---|---|---|
| Light touch control panel for setting parameter, which will be stored permanently even in case of power failure, and can be locked & protected with password. | 3.5”matrix128*64LCD screen with backlight. | 9options (1s,2s,4s,6s,15s,30s,60s,120s,240s) | 3days(record interval of 1s) | Ambient temperature : 0-50℃ | AC100-240V ,50/60HZ | ≤5W | Standard panel mounted |

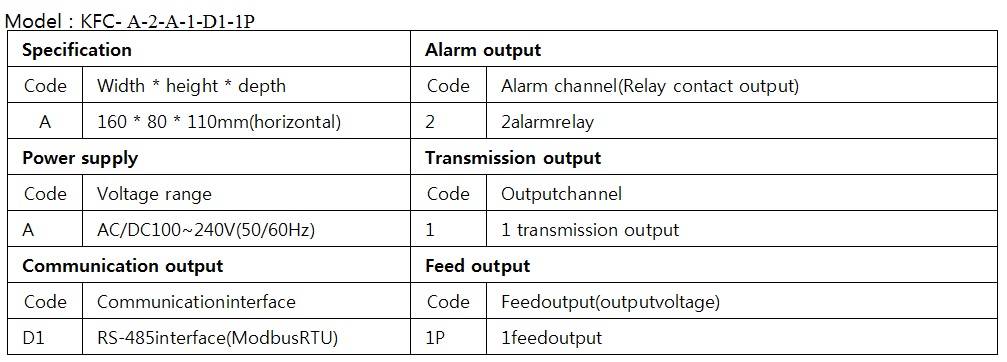

Model Selection Guide

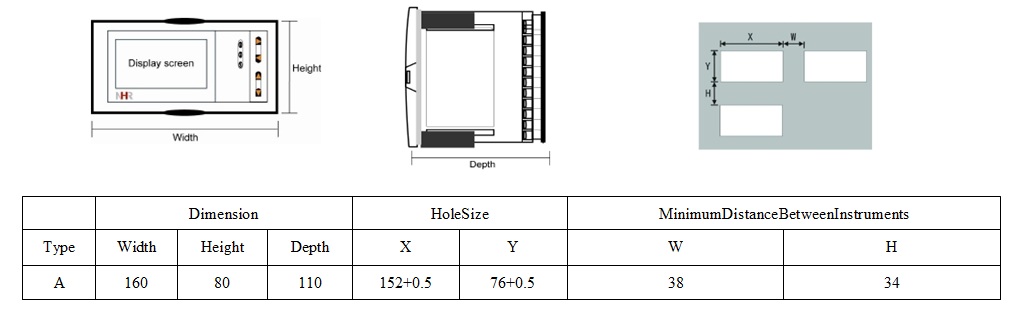

Dimension

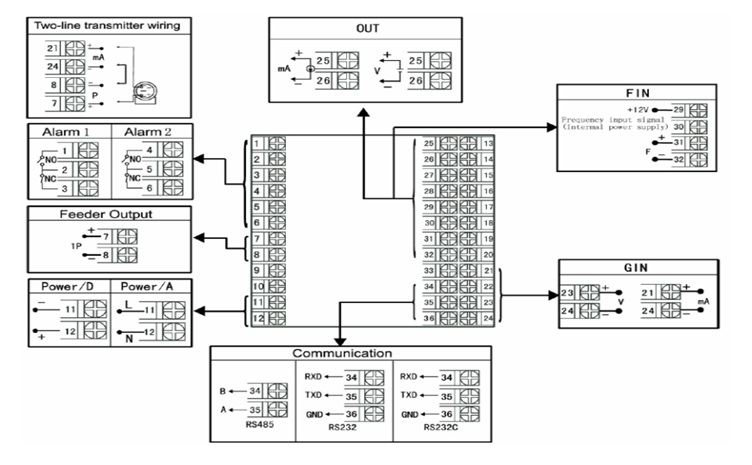

Wiring Diagram

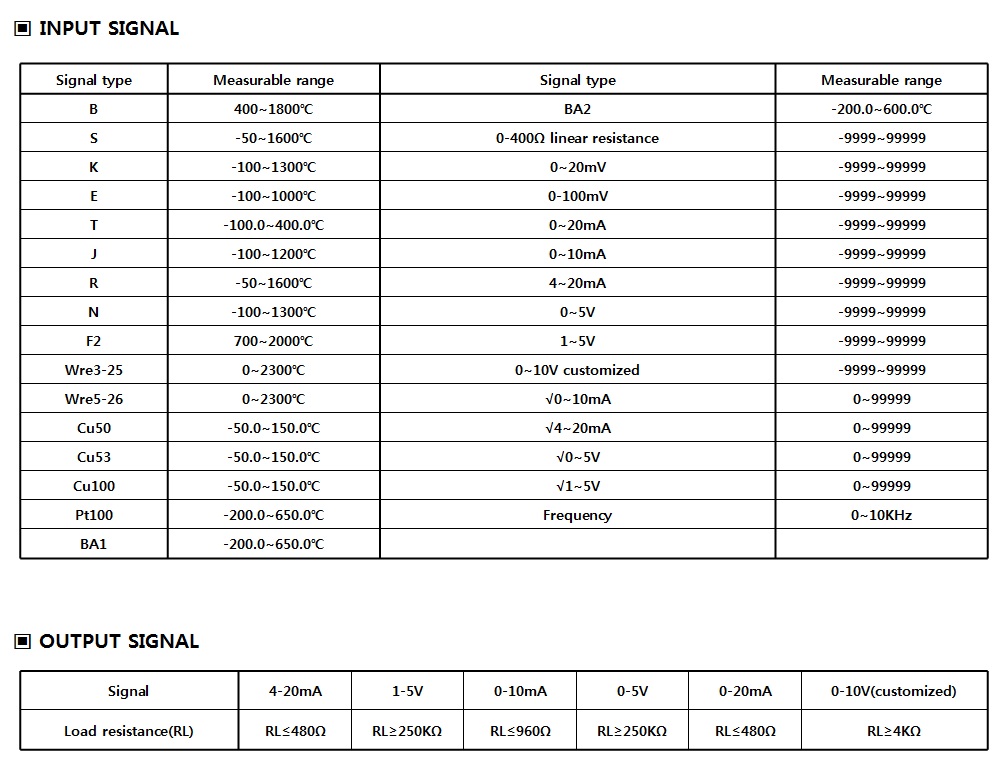

Signal
