Ball Valve
GRPP/PVDF/PVD-U/ABS

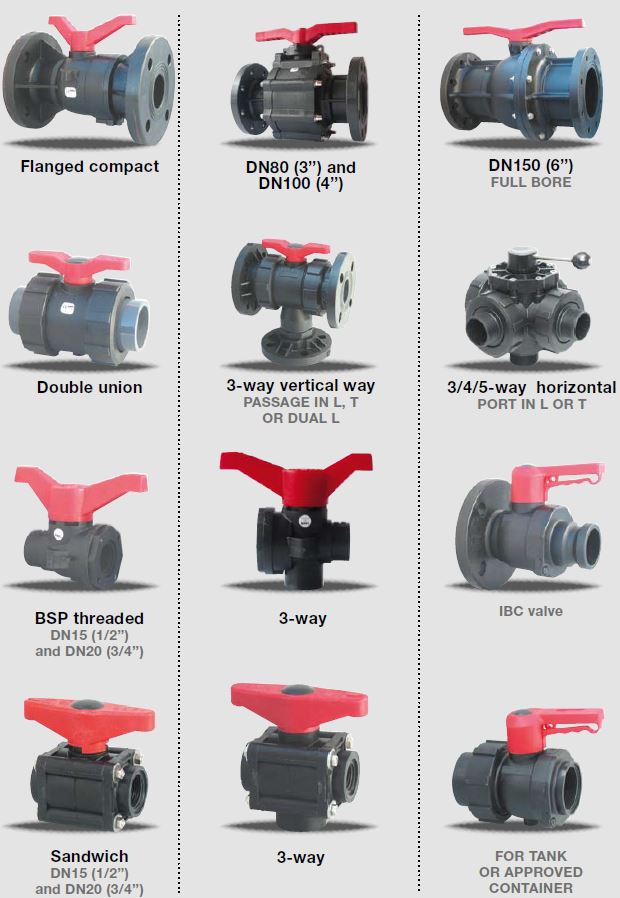

in GRPP(Glass Reinforced PolyPropylene)
|
SPECIFICATION
| Pressure | Temperature | Dimensions | 2-way | 3-way | 4-way | 5-way | End fittings | Flanges in compliance with standards | Removable union nuts |
Seat | O-rings seals | Options |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN10 | -10℃ to +100℃ | DN15 to DN150(1/2" to 6") | DN15 to DN100(1/2" to 4") | DN50(2") | DN50(2") | DIN PN10, ANSI 150, BS10/Table D | for bonding, welding, end-to-end welding, tapped, threaded |
PTFE | EPDM, FKM, PTFE | Exists in PP ATFE Electric or pneumatic actuated |

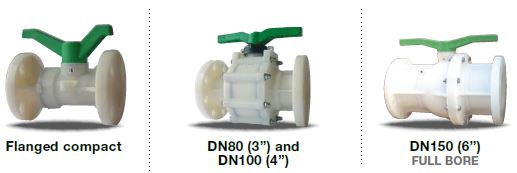

in PVDF(PolyVinylidene Fluoride)
 |
||
 |
 |
|
SPECIFICATION
| Pressure | Temperature | Dimensions | 2-way | 3-way | End fittings | Flanges in compliance with standards | Removable union nuts |
Seat | O-rings seals | Options |
|---|---|---|---|---|---|---|---|---|---|---|
| PN10 | -20℃ to +120℃ | DN15 to DN150(1/2" to 6") | DN50(2") | DIN PN10, ANSI 150, BS10/Table D | Female for welding, end-to-end welding, tapped, threaded |
PTFE | EPDM, FKM, PTFE | Exists in PP ATFE Electric or pneumatic actuated |
in PVC-U(PolyVinyl Chloride)
|
|
SPECIFICATION
| Pressure | Temperature | Dimensions | 2-way | End fittings | Flanges in compliance with standards | Removable union nuts | Seat | O-rings seals | Options |
|---|---|---|---|---|---|---|---|---|---|
| PN10 | 0℃ to +60℃ | DN15 to DN150(1/2" to 6") | DIN PN10, ANSI 150 | for bonding, threaded | PTFE | EPDM, FKM | Double union Electric or pneumatic |
in ABS(Acrylonitrile Butadiene Styrene)
|
SPECIFICATION
| Pressure | Temperature | Dimensions | 2-way | End fittings | Removable union nuts | Seat | O-rings seals | Options |
|---|---|---|---|---|---|---|---|---|
| PN10 | -20℃ to +60℃ | DN15 to DN50(1/2" to 2") | for bonding, threaded | PTFE | EPDM, food grade EPDM, FKM, NBR | Electric or pneumatic actuated |
