Diaphragm Valve
PPH/PVDF/PVC-U

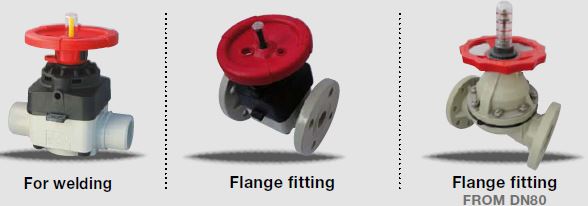

in PPH(Polypropylene)
|
SPECIFICATION
| Pressure | Temperature | Dimensions | End fittings | Flanges in compliance with standards | End pieces | Diaphragm |
|---|---|---|---|---|---|---|
| PN 10* | 0℃ to + 90℃ | DN15 to DN250(1/2" to 10") | DIN PN10, ANSI/150 | Male for push-on polyfusion | EPDM, FKM, PTFE |
* up to DN65(2"1/2)
in PVDF(PolyVinylidene Fluoride)
 |
SPECIFICATION
| Pressure | Temperature | Dimensions | End fittings | Flanges in compliance with standards | End pieces | Diaphragm |
|---|---|---|---|---|---|---|
| PN 10* | -20℃ to +120℃ | DN15 to DN250(1/2" to 10") | DIN PN10, ANSI/150 | Male for push-on polyfusion | EPDM, FKM, PTFE |
* up to DN65(2" 1/2)

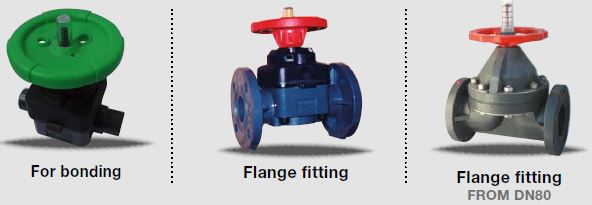

in PVC-U(PolyVinyl Chloride)
|
SPECIFICATION
| Pressure | Temperature | Dimensions | End fittings | Flanges in compliance with standards | End pieces | Diaphragm |
|---|---|---|---|---|---|---|
| PN 10* | 0℃ to +60℃ | DN15 to DN250(1/2" to 10") | DIN PN10, ANSI/150 | Male for bonding | EPDM, FKM, PTFE |
* up to DN65(2" 1/2)
