MVT-3000F
Vortex flowmeter - Flange type
Specification
| Model | Size | Process connection | Accuracy | Measuring range | Repeatablilty | temperature | Ambient Temperature | Pressure | Power supply | Display |
Output |
Protection class | Communication | Special Function | Option |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MVT-3000F | 15 ~ 300mm | Flange type(KS, ANSI, DIN) | Liquid : ±0.7% of reading, Gas, steam : ±1.0% of reading | 1.6 ~ 540,000 kg/h | ±0.2% of reading | -40~350℃(standard) | -25~60℃ | 78Kg/cm2(Max.) | DC 12~32V | Flowrate(6-digit) Totalizer(8-digit) 2line LCD |
Analog : DC 4~20mA(Passive) Pulse : Scale pulse |
IP65 | HART or RS-485(MODBUS) | - | Temperature, Pressure compensation Temperature : PT1000Ω Pressure : 0 ~30mV DC |
Dimension
| (mm) | Inner diameter | Length L | Height H |
|---|---|---|---|
| D1(mm) | (mm) | (mm) | |
| 25 | 25 | 170 | 460 |
| 32 | 32 | 170 | 460 |
| 40 | 40 | 190 | 460 |
| 50 | 50 | 190 | 475 |
| 65 | 65 | 220 | 488 |
| 80 | 80 | 220 | 510 |
| 100 | 100 | 240 | 530 |
| 125 | 125 | 260 | 560 |
| 150 | 150 | 280 | 585 |
| 200 | 200 | 300 | 645 |
| 250 | 250 | 360 | 710 |
| 300 | 300 | 400 | 770 |

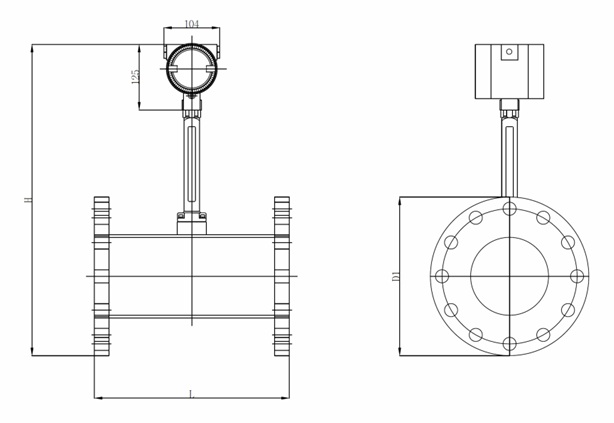

Drawing
FLOW RANGE TABLE
Water & Gas Flow Range
| Size(mm) | Water | Normal pressure and temperature air(NPT Air) |
|---|---|---|
| standard measuring range(m3/h) | standard measuring range(m3/h) | |
| 15 | 0.8 ∼ 6 | 6 ∼ 40 |
| 20 | 1 ∼ 8 | 8 ∼ 50 |
| 25 | 1.5 ~ 25 | 10 ~ 80 |
| 32 | 1.7 ~ 14 | 16 ~ 120 |
| 40 | 2.5 ~ 30 | 25 ~ 200 |
| 50 | 3 ~ 50 | 30 ~ 300 |
| 65 | 5 ~ 80 | 50 ~ 500 |
| 80 | 8 ~ 120 | 80 ~ 800 |
| 100 | 12 ~ 200 | 120 ~ 1200 |
| 125 | 20 ~ 300 | 160 ~ 1600 |
| 150 | 30 ~ 400 | 250 ~ 2500 |
| 200 | 50 ~ 800 | 400 ~ 4000 |
| 250 | 80 ~ 1200 | 600 ~ 6000 |
| 300 | 100 ~ 1600 | 1000 ~ 10000 |
Saturated Steam Flow Range
| SIZE | Max. Flow Range (kg/h) | ||||||
|---|---|---|---|---|---|---|---|
| mm | inch | 1KG/CM2.G | 2KG/CM2.G | 4KG/CM2.G | 6KG/CM2.G | 8KG/CM2.G | 10KG/CM2.G |
| 15 | 1/2” | 3 ∼ 35 | 4 ∼ 52 | 5 ∼ 83 | 6 ∼ 114 | 7 ∼ 145 | 8 ∼ 176 |
| 20 | ¾” | 6 ∼ 63 | 7 ∼ 92 | 10 ∼ 149 | 11 ∼ 204 | 13 ∼ 259 | 14 ∼ 313 |
| 25 | 1” | 10 ∼ 93 | 12 ∼ 144 | 15 ∼ 232 | 18 ∼ 319 | 20 ∼ 405 | 22 ∼ 490 |
| 32 | 1 2/4" | 16 ∼ 162 | 20 ∼ 232 | 25 ∼ 381 | 30 ∼ 523 | 33 ∼ 663 | 37 ∼ 803 |
| 40 | 1-1/2” | 23 ∼ 305 | 28 ∼ 444 | 36 ∼ 715 | 42 ∼ 980 | 47 ∼ 1244 | 52 ∼ 1505 |
| 50 | 2” | 36 ∼ 476 | 44 ∼ 694 | 56 ∼ 1117 | 66 ∼ 1532 | 74 ∼ 1944 | 82 ∼ 2352 |
| 65 | 2-1/2” | 62 ∼ 805 | 75 ∼ 1173 | 95 ∼ 1889 | 111 ∼ 2590 | 126 ∼ 3285 | 138 ∼ 3976 |
| 80 | 3” | 94 ∼ 1220 | 114 ∼ 1777 | 144 ∼ 2861 | 169 ∼ 3923 | 190 ∼ 4977 | 210 ∼ 6023 |
| 100 | 4” | 147 ∼ 1906 | 178 ∼ 2777 | 226 ∼ 4471 | 264 ∼ 6130 | 298 ∼ 7776 | 328 ∼ 9411 |
| 125 | 5” | 230∼2979 | 278∼4339 | 353∼6987 | 414∼9579 | 466∼12515 | 512∼14704 |
| 150 | 6” | 332∼4289 | 401∼6248 | 509∼10061 | 596∼13794 | 671∼17497 | 738∼21174 |
| 200 | 8” | 591∼7626 | 713∼11108 | 905∼17887 | 1059∼24523 | 1193∼31107 | 1313∼37644 |
| 250 | 10” | 923∼11916 | 1114∼17356 | 1414∼27948 | 1656∼38317 | 1865∼48605 | 2051∼58819 |
| 300 | 12” | 1329∼17159 | 1604∼24993 | 2036∼40245 | 2384∼55177 | 2685∼69991 | 2954∼84699 |

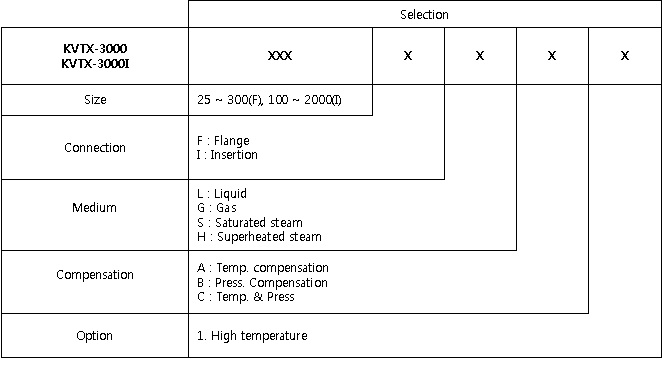

Model Selection Guide

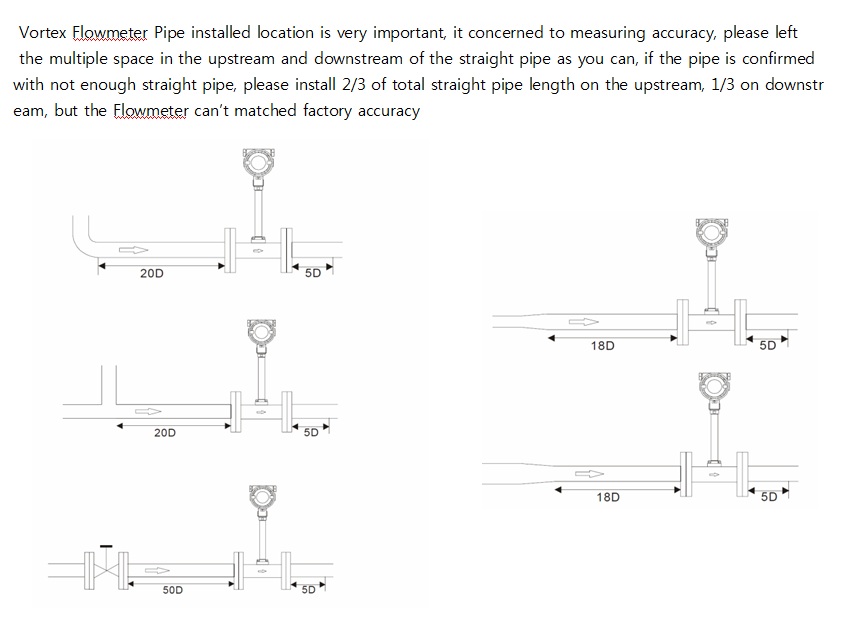

Installation
