Converter

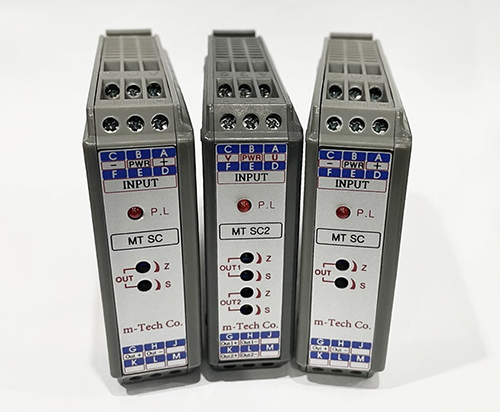

Slim Type
소형 경량의 디자인으로 좁은 공간 및 많은 수량이 필요할 때 사용함이 편리합니다.
|
02
Specification
| Input | Output |
Power | Isolation | Response Time | Insulation Resistance | Dielectric Strength | Operating Temperature | Operating Humidity | Mouting | Dimension | Weight | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2Wire Loop , DC Signal , RTD , T/C |
DC Voltage 12V max DC Current 30mA max Potentiometer , Frequency , etc |
DC 24 AC 90∼250V 50/60Hz (Option) | input to output to power supply | 0.5sec , 0 ∼ 90% | Greater than 100MΩ with 500VDC | 1500VAC @ 1Minute (Input to Output to Power) | 0∼50℃ | 90% RH Max.(non Condensing) | 75(H)mm x 25.5(W)mm x 100(D)mm | about 100g | Gray polyamide UL94.V2 |
03
Document File
| 모델 | 사양 | 카다로그 |
|---|---|---|
| MTSC-DS | SLIM TYPE DC SIGNAL TRANSMITTER |
|
| MTSC-IPT | SLIM TYPE POWER DISTRIBUTED TRANSMITTER |
|
| MTSC-RTD | SLIM TYPE RTD SENSOR TRANSMITTER |
|
| MTSC-PMC | SLIM TYPE POTENTIOMETER TRANSMITTER |
|
