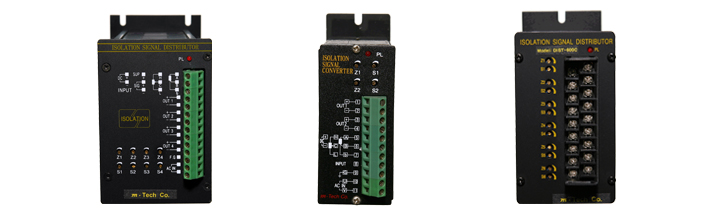

Wall-Mounting Type
Isolated 1/2/4/6 Output Converter 출력으로 각종 Signal을 Input으로 받아 절연될 신호도 (Multi Point Output) 전송하는 컨버터입니다.
|
Specification
| Input |
Output |
Power | Conversion Accuracy | Response Time | Insulation Resistance | Dielectric Strength | Operating Temperature | Non Operating Temperature | Dimension |
Weight | Housing Material | Mounting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2-Wire Transmitter DC Signal, RTD, T/C Potentiometer Frequency |
DC Current 0∼20mA DC Voltage -10∼+12V |
AC 110/220V 50/60Hz , AC 24V (Option) | 0.15% max | 0∼90% 0.5 Sec | Greater than 100MΩ with 500VDC | 1500VAC @ 1minute (Input to Output to Power) | 0∼50℃ | -20∼80℃ |
1/2 out - 120(W)mm x 42(W)mm x 116(D)mm 4out - 135(H)mm x 75(W)mm x 159(D)mm 6out - 135(H)mm x 61(W)mm x 162(D)mm |
about 400g , 4out & 6out about 900g | Aluminum (black) case | Wall mounting (M4 Screw) |
Document File
| 모델 | 사양 | 카다로그 |
|---|---|---|
| MTW-DST | SIGNAL TRANSMITTER |
|
| MTW-IPT | POWER DISTRIBUTER |
|
| MTW-FDT | FREQUENCY to DC TRANSMITTER |
|
